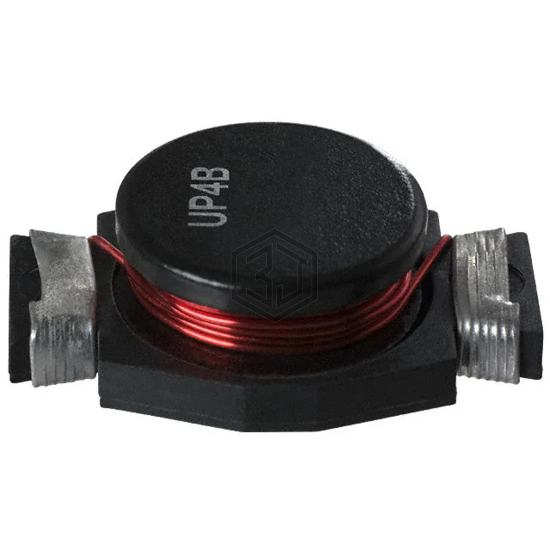

FIXED IND 100UH 2A 170 MOHM SMD
UP4B-101-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 100UH 2A 170 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 2 A.
In Stock: 528
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2 A |
| Current - Saturation (Isat) | 3.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.870" L x 0.591" W (22.10mm x 15.00mm) |
| Height - Seated (Max) | 0.310" (7.87mm) |
Submit your RFQ for UP4B-101-R and get a quote within 24 hours.
