FIXED IND 68UH 1.6A 155.8MOHM SM

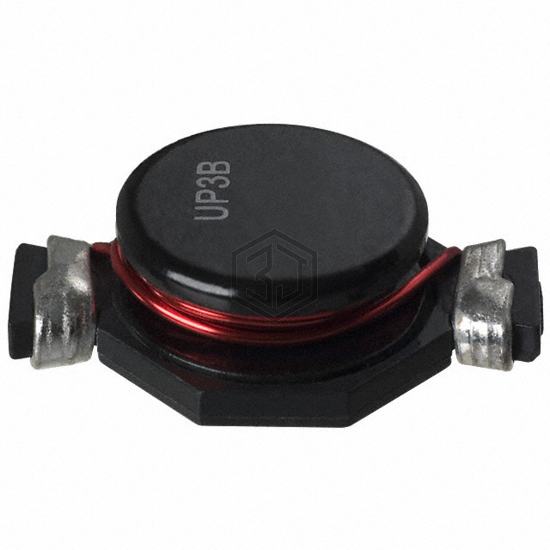

UP3B-680-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 68UH 1.6A 155.8MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 1.6 A.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | 2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 155.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.760" L x 0.520" W (19.30mm x 13.21mm) |
| Height - Seated (Max) | 0.268" (6.80mm) |
Submit your RFQ for UP3B-680-R and get a quote within 24 hours.
