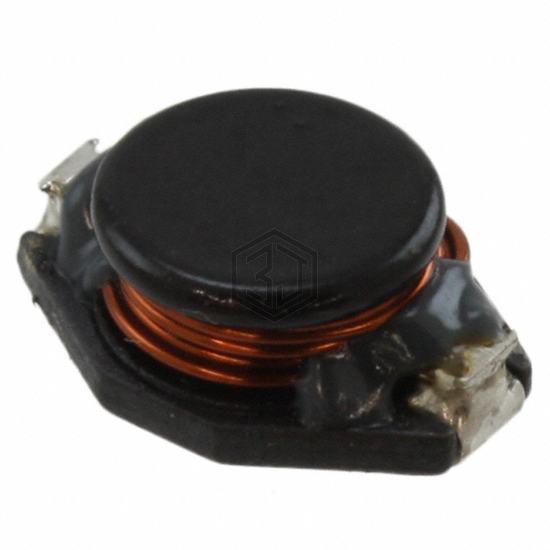

FIXED IND 22UH 2.7A 85 MOHM SMD
UP2UC-220-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 22UH 2.7A 85 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, package / case Nonstandard, current rating (amps) 2.7 A.
In Stock: 1,333
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 2.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 85mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 19MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.205" (5.21mm) |
Submit your RFQ for UP2UC-220-R and get a quote within 24 hours.
