FIXED IND 100UH 1.26A 233.1 MOHM

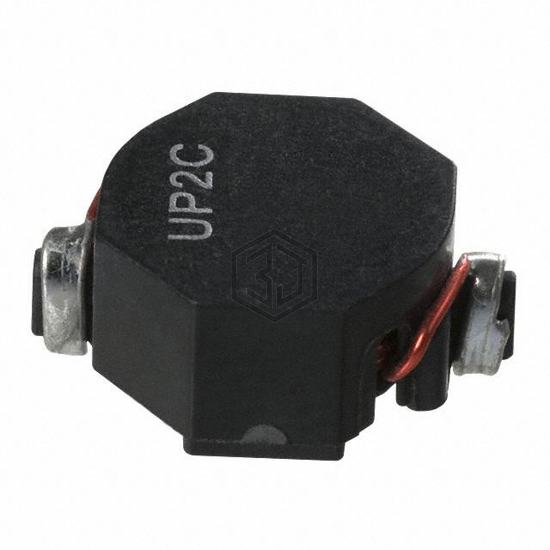

UP2C-101-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 100UH 1.26A 233.1 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 1.26 A.
In Stock: 184
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.26 A |
| Current - Saturation (Isat) | 1.24A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 233.1mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.508" L x 0.370" W (12.90mm x 9.40mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
