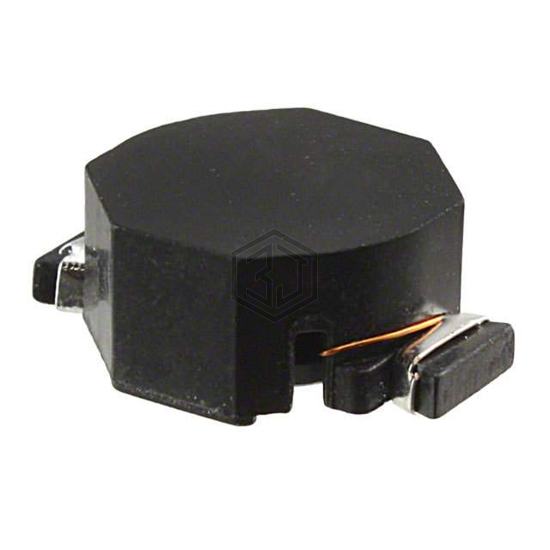

FIXED IND 22UH 2.8A 61.7MOHM SMD
UP2B-220-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 22UH 2.8A 61.7MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 2.8 A.
In Stock: 13,198
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | 2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 61.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.550" L x 0.410" W (13.97mm x 10.41mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for UP2B-220-R and get a quote within 24 hours.
