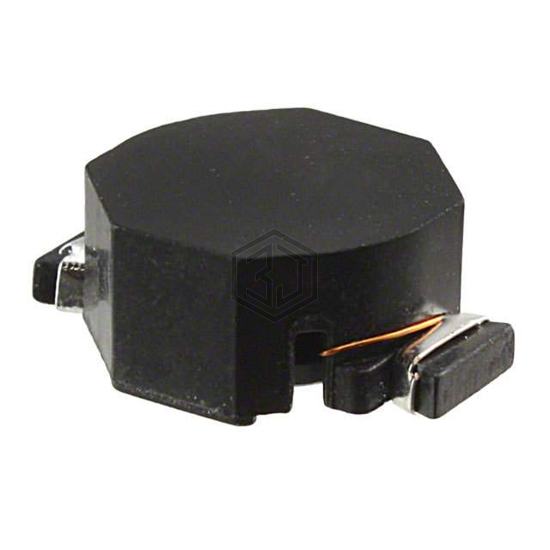

FIXED IND 15UH 3.5A 41 MOHM SMD
UP2B-150-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 15UH 3.5A 41 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 12,256
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 2.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 41mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.550" L x 0.410" W (13.97mm x 10.41mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for UP2B-150-R and get a quote within 24 hours.
