FIXED IND 330UH 760MA 977.5 MOHM

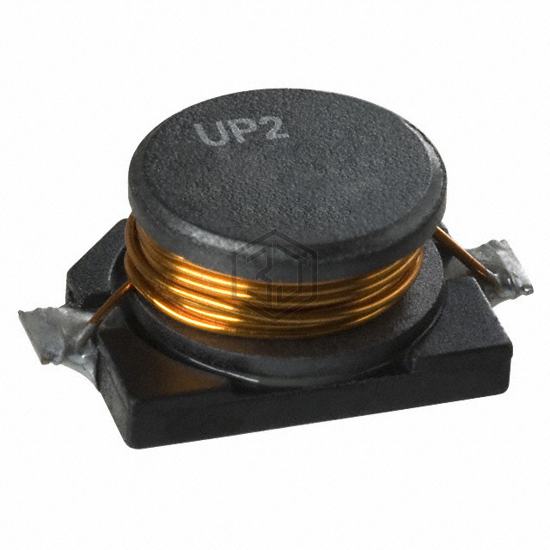

UP2-331-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 330UH 760MA 977.5 MOHM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 760 mA, size / dimension 0.541" L x 0.345" W (13.74mm x 8.76mm).
In Stock: 1,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 760 mA |
| Current - Saturation (Isat) | 510mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 977.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.541" L x 0.345" W (13.74mm x 8.76mm) |
| Height - Seated (Max) | 0.231" (5.86mm) |
