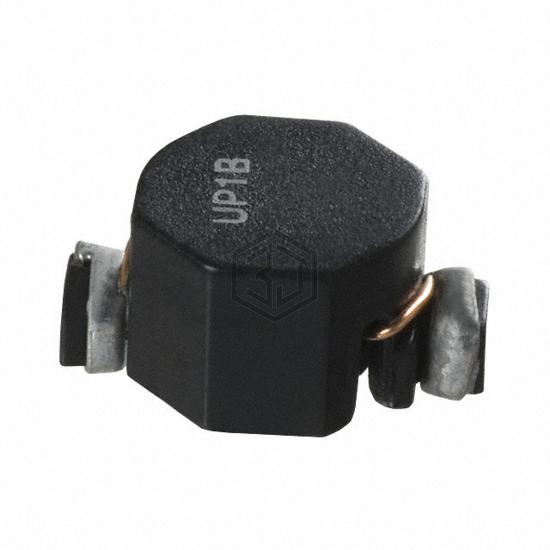

FIXED IND 330UH 280MA 3.1OHM SMD
UP1B-331-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 330UH 280MA 3.1OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 280 mA.
In Stock: 1,084
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 280 mA |
| Current - Saturation (Isat) | 310mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.1Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.350" L x 0.240" W (8.89mm x 6.10mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for UP1B-331-R and get a quote within 24 hours.
