FIXED IND 100UH 370MA 1.58OHM SM

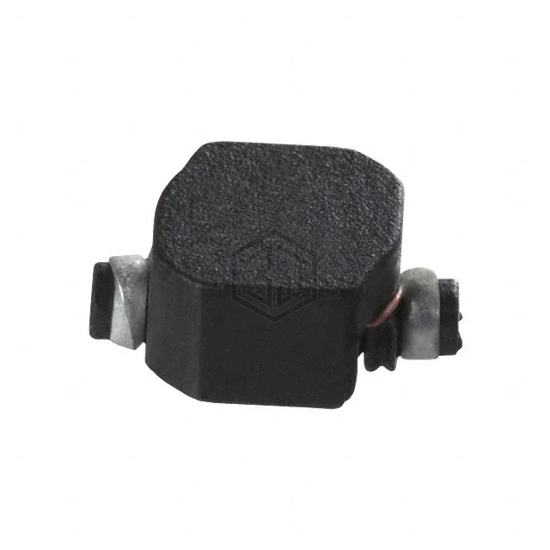

UP0.4C-101-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 100UH 370MA 1.58OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 370 mA.
In Stock: 1,297
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 370 mA |
| Current - Saturation (Isat) | 350mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.58Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) |
Submit your RFQ for UP0.4C-101-R and get a quote within 24 hours.
