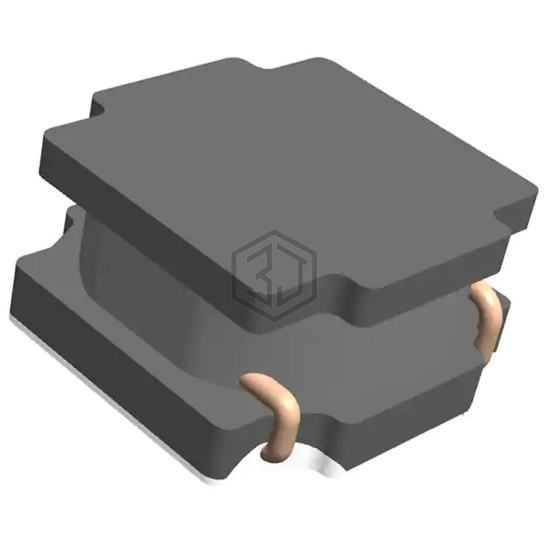

IND SMD POWER 4.7UH 5.8A
SDCHA1V8040-4R7-R is a Fixed Inductors manufactured by Eaton - Electronics Division. IND SMD POWER 4.7UH 5.8A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.8 A.
In Stock: 621
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.8 A |
| Current - Saturation (Isat) | 6.7A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 19.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 38MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SDCHA1V8040-4R7-R and get a quote within 24 hours.
