IND SMD POWER 56.0UH 1.4A

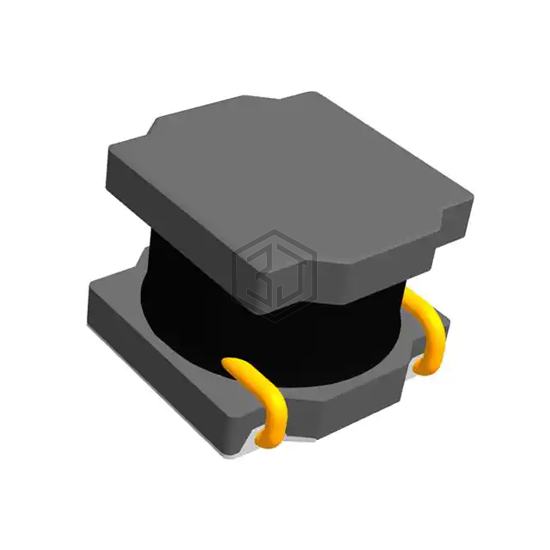

SDCHA1V6045-560-R is a Fixed Inductors manufactured by Eaton - Electronics Division. IND SMD POWER 56.0UH 1.4A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.4 A.
In Stock: 750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 56 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.4 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 230mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 11MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for SDCHA1V6045-560-R and get a quote within 24 hours.
