FIXED IND 65.6UH 920MA 355 MOHM

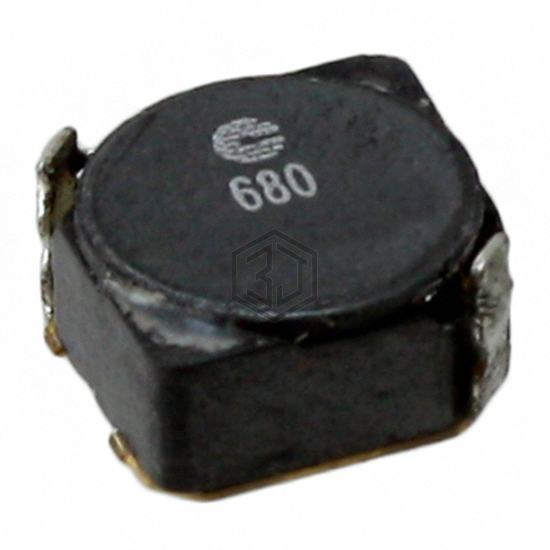

SD6030-680-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 65.6UH 920MA 355 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 920 mA.
In Stock: 4,025
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 65.6 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 920 mA |
| Current - Saturation (Isat) | 520mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 355mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SD6030-680-R and get a quote within 24 hours.
