FIXED IND 4.1UH 2.22A 57MOHM SMD

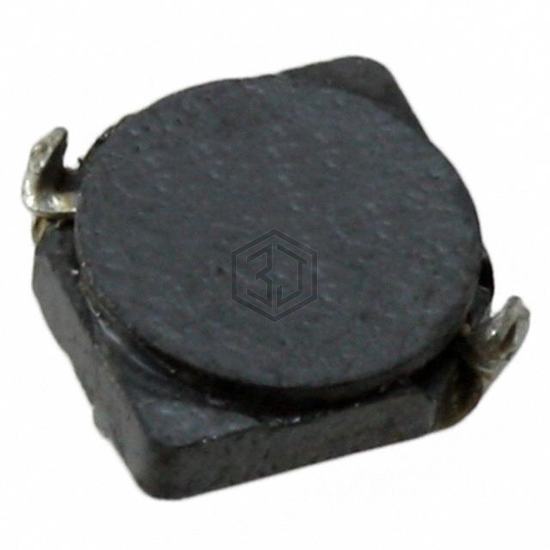

SD6020-4R1-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 4.1UH 2.22A 57MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.22 A.
In Stock: 3,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.22 A |
| Current - Saturation (Isat) | 1.95A |
| Shielding | Shielded |
| DC Resistance (DCR) | 57mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SD6020-4R1-R and get a quote within 24 hours.
