FIXED IND 8.2UH 1.92A 72.4 MOHM

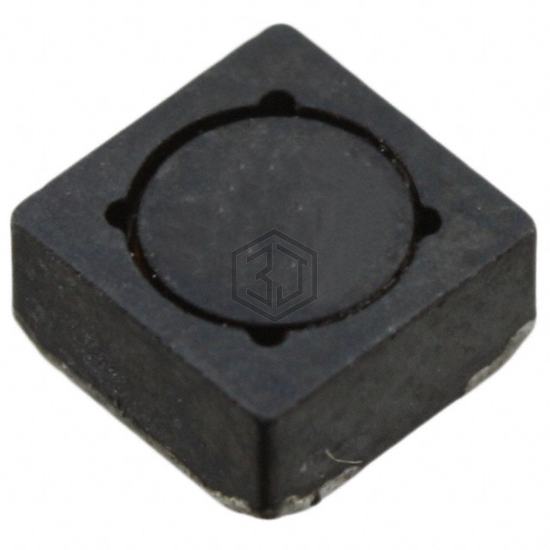

SD25-8R2-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 8.2UH 1.92A 72.4 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 1.92 A.
In Stock: 3,120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.92 A |
| Current - Saturation (Isat) | 1.45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 72.4mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for SD25-8R2-R and get a quote within 24 hours.
