FIXED IND 15UH 980MA 260.9 MOHM

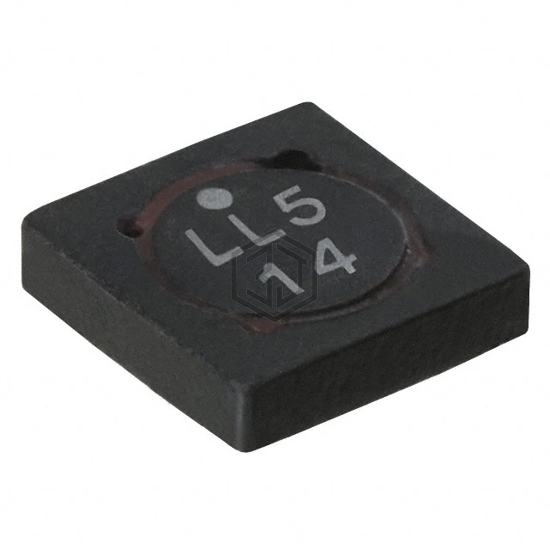

SD14-150-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 15UH 980MA 260.9 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 980 mA.
In Stock: 3,575
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 980 mA |
| Current - Saturation (Isat) | 969mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 260.9mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
Submit your RFQ for SD14-150-R and get a quote within 24 hours.
