PTC RESET FUSE 6V 3.7A 1812

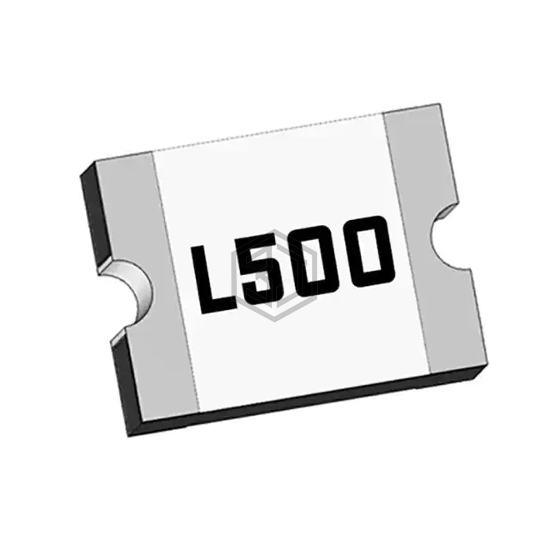

PTSLR18126V370 is a PTC Resettable Fuses manufactured by Eaton - Electronics Division. PTC RESET FUSE 6V 3.7A 1812. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1812 (4532 Metric), Concave, current - max 50 A.
In Stock: 3,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Max | 50 A |
| Current - Hold (Ih) (Max) | 3.7 A |
| Current - Trip (It) | 9.1 A |
| Time to Trip | 2 s |
| Resistance - Initial (Ri) (Min) | 3 mOhms |
| Resistance - Post Trip (R1) (Max) | 18 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.028" (0.70mm) |
| Lead Spacing | - |
Submit your RFQ for PTSLR18126V370 and get a quote within 24 hours.
