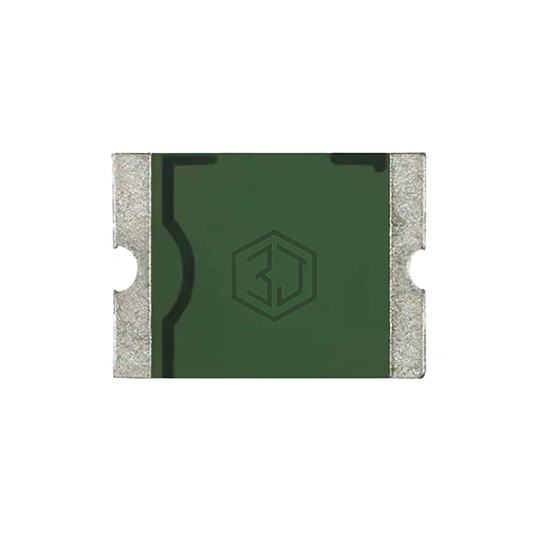

PTC RESET FUSE 1.5A 16V 1812
PTSA181216V150 is a PTC Resettable Fuses manufactured by Eaton - Electronics Division. PTC RESET FUSE 1.5A 16V 1812. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1812 (4532 Metric), Concave, current - max 40 A.
In Stock: 975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Voltage - Max | 16V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 1.5 A |
| Current - Trip (It) | 3 A |
| Time to Trip | 500 ms |
| Resistance - Initial (Ri) (Min) | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 120 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.178" L x 0.126" W (4.53mm x 3.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.067" (1.70mm) |
| Lead Spacing | - |
Submit your RFQ for PTSA181216V150 and get a quote within 24 hours.
