PTC RESET FUSE 100MA 60V 1206

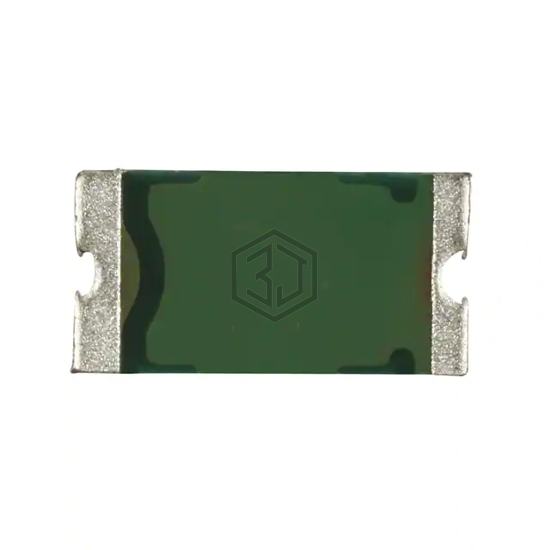

PTSA120660V010 is a PTC Resettable Fuses manufactured by Eaton - Electronics Division. PTC RESET FUSE 100MA 60V 1206. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1206 (3216 Metric), Concave, current - max 10 A.
In Stock: 4,747
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Voltage - Max | 60V |
| Current - Max | 10 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 250 mA |
| Time to Trip | 200 ms |
| Resistance - Initial (Ri) (Min) | 1.6 Ohms |
| Resistance - Post Trip (R1) (Max) | 15 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.132" L x 0.067" W (3.35mm x 1.70mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
Submit your RFQ for PTSA120660V010 and get a quote within 24 hours.
