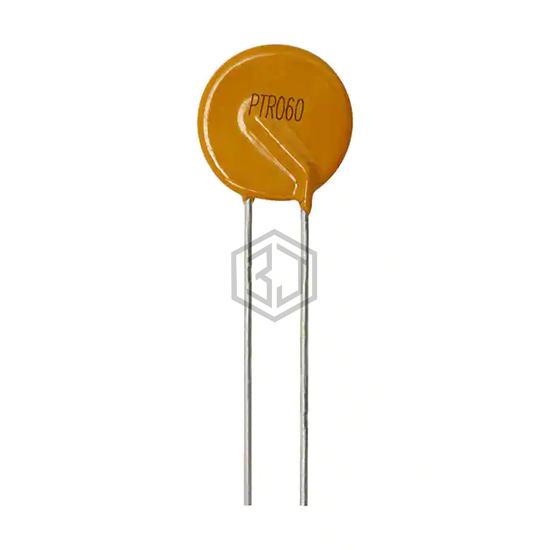

PTC RESET FUSE 60V 3.75A RADIAL
PTR060V0375-TR is a PTC Resettable Fuses manufactured by Eaton - Electronics Division. PTC RESET FUSE 60V 3.75A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.
In Stock: 9,705
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 3.75 A |
| Current - Trip (It) | 7.5 A |
| Time to Trip | 24 s |
| Resistance - Initial (Ri) (Min) | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 1.118" Dia x 0.118" T (28.40mm x 3.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.394" (10.00mm) |
