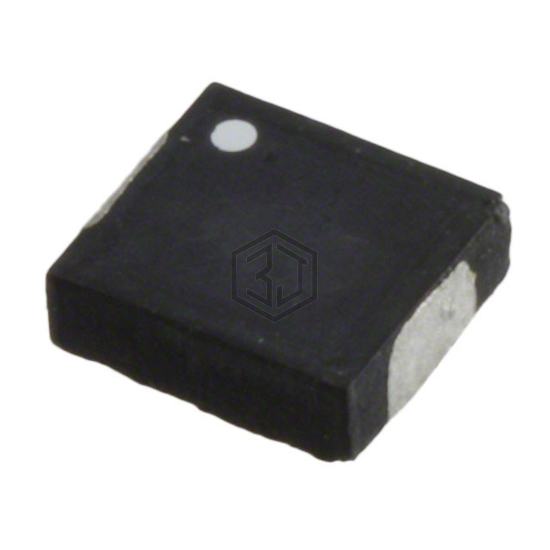

FIXED IND 4.7UH 2.3A 92 MOHM SMD
MPI4040R3-4R7-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 4.7UH 2.3A 92 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.3 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.3 A |
| Current - Saturation (Isat) | 4.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 92mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.073" (1.85mm) |
Submit your RFQ for MPI4040R3-4R7-R and get a quote within 24 hours.
