FIXED IND 3.3NH 500MA 130MOHM SM

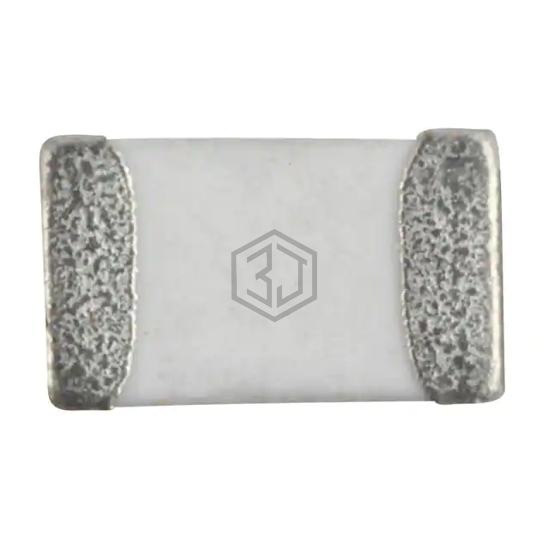

MCL2012V2-3R3-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 3.3NH 500MA 130MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0805 (2012 Metric), current rating (amps) 500 mA.
In Stock: 3,444
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 3.3 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 130mOhm Max |
| Q @ Freq | 12 @ 100MHz |
| Frequency - Self Resonant | 5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
