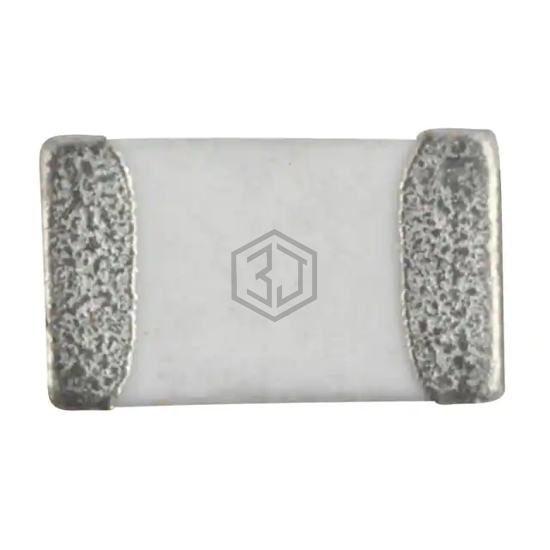

FIXED IND 100NH 300MA 900MOHM SM
MCL2012V2-101-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 100NH 300MA 900MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0805 (2012 Metric), current rating (amps) 300 mA.
In Stock: 11,134
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 100 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 900mOhm Max |
| Q @ Freq | 18 @ 100MHz |
| Frequency - Self Resonant | 700MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
Submit your RFQ for MCL2012V2-101-R and get a quote within 24 hours.
