FIXED IND 18NH 300MA 550MOHM SMD

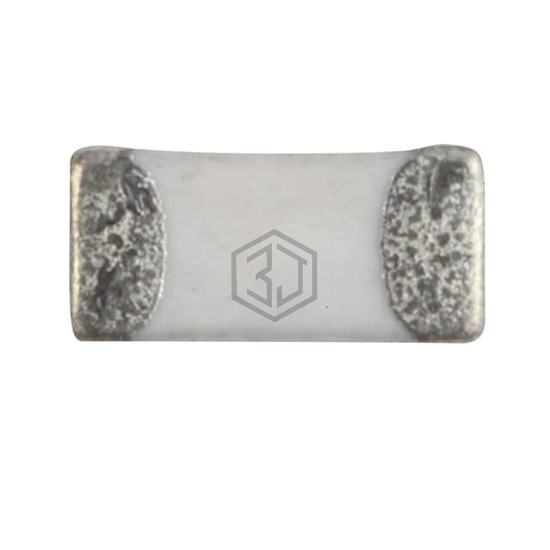

MCL1608V2-180-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 18NH 300MA 550MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), current rating (amps) 300 mA.
In Stock: 7,290
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 18 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 550mOhm Max |
| Q @ Freq | 12 @ 100MHz |
| Frequency - Self Resonant | 2.2GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for MCL1608V2-180-R and get a quote within 24 hours.
