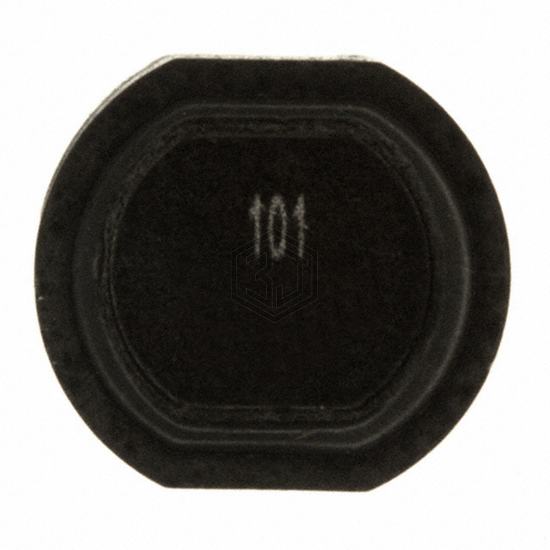

FIXED IND 100UH 808MA 357MOHM SM
LDS0705-101M-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 100UH 808MA 357MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 808 mA.
In Stock: 476
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 808 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 357mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for LDS0705-101M-R and get a quote within 24 hours.
