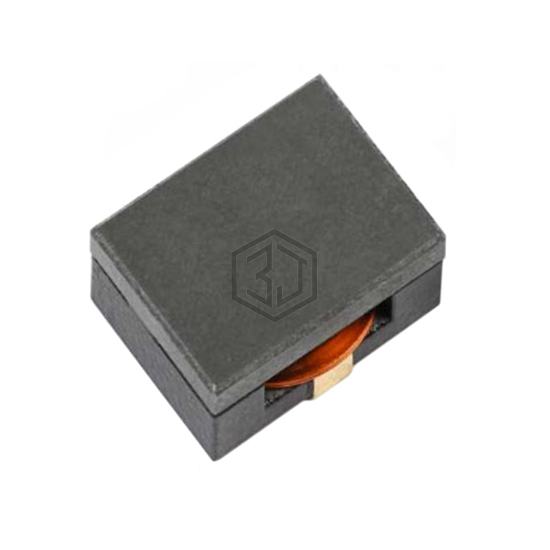

FIXED IND 480NH 32A 1.7 MOHM SMD
HCV1707R1-R48-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 480NH 32A 1.7 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, 3 Lead, current rating (amps) 32 A.
In Stock: 8,328
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 480 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 32 A |
| Current - Saturation (Isat) | 47A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.7mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | 3-SMD |
| Size / Dimension | 0.681" L x 0.551" W (17.30mm x 14.00mm) |
| Height - Seated (Max) | 0.272" (6.90mm) |
