FIXED IND 2.2UH 37A 2.5 MOHM SMD

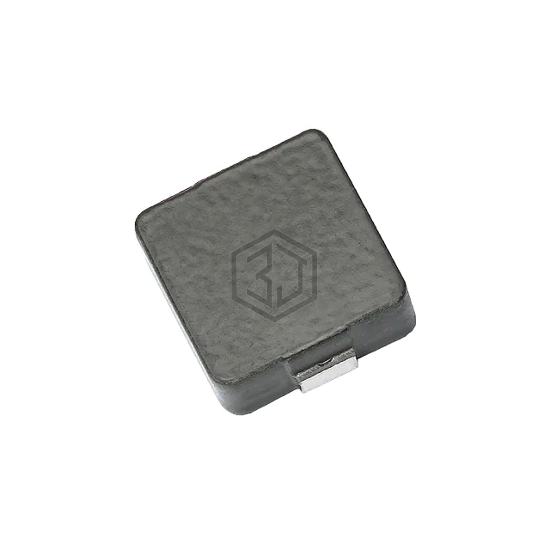

HCMA1707-2R2-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 2.2UH 37A 2.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 37 A.
In Stock: 66
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 37 A |
| Current - Saturation (Isat) | 34A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.677" L x 0.663" W (17.20mm x 16.85mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for HCMA1707-2R2-R and get a quote within 24 hours.
