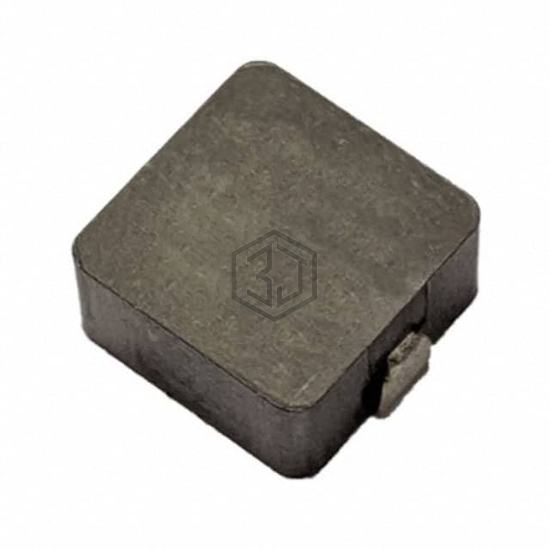

FIXED IND 33UH 3.5A 84 MOHM SMD
HCM1A1105V2-330-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 33UH 3.5A 84 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 9,736
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 84mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.425" L x 0.394" W (10.80mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
