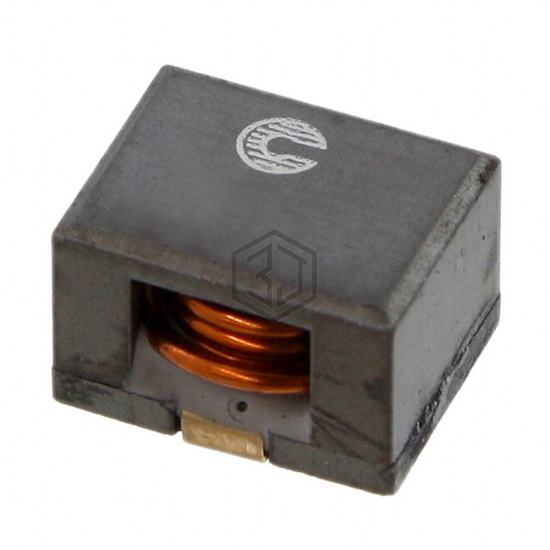

FIXED IND 6.8UH 9.4A 8.65MOHM SM
HCF1007-6R8-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 6.8UH 9.4A 8.65MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.4 A.
In Stock: 703
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.4 A |
| Current - Saturation (Isat) | 7.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.65mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.307" W (10.10mm x 7.80mm) |
| Height - Seated (Max) | 0.262" (6.65mm) |
Submit your RFQ for HCF1007-6R8-R and get a quote within 24 hours.
