FIXED IND 1UH 16A 2.65 MOHM SMD

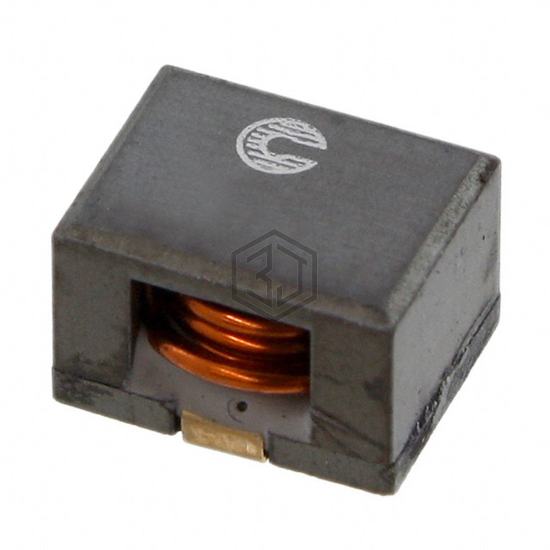

HCF1007-1R0-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 1UH 16A 2.65 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 16 A.
In Stock: 1,328
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 16 A |
| Current - Saturation (Isat) | 26A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.65mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.307" W (10.10mm x 7.80mm) |
| Height - Seated (Max) | 0.262" (6.65mm) |
