FIXED IND 470NH 33.7A 0.88 MOHM

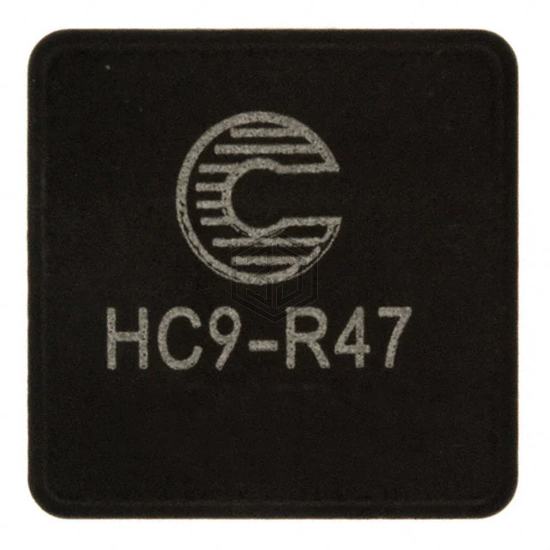

HC9-R47-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 470NH 33.7A 0.88 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 33.7 A.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 470 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 33.7 A |
| Current - Saturation (Isat) | 57A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.88mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.528" L x 0.516" W (13.40mm x 13.10mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for HC9-R47-R and get a quote within 24 hours.
