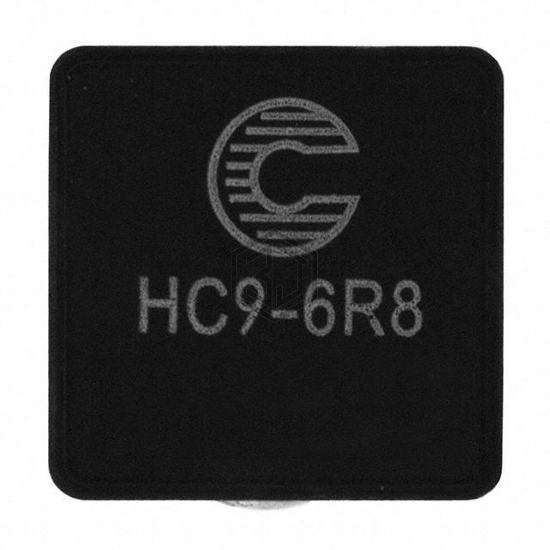

FIXED IND 6.8UH 10.3A 9.4MOHM SM
HC9-6R8-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 6.8UH 10.3A 9.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 10.3 A.
In Stock: 434
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 6.8 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 10.3 A |
| Current - Saturation (Isat) | 15.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.555" L x 0.516" W (14.10mm x 13.10mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for HC9-6R8-R and get a quote within 24 hours.
