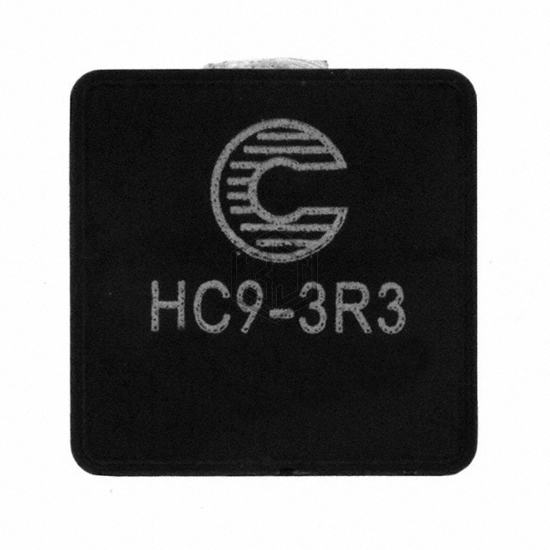

FIXED IND 3.3UH 14.3A 4.87 MOHM
HC9-3R3-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 3.3UH 14.3A 4.87 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 14.3 A.
In Stock: 113
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 3.3 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 14.3 A |
| Current - Saturation (Isat) | 22A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.87mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.555" L x 0.516" W (14.10mm x 13.10mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for HC9-3R3-R and get a quote within 24 hours.
