FIXED IND 4.7UH 33.8A 2.17 MOHM

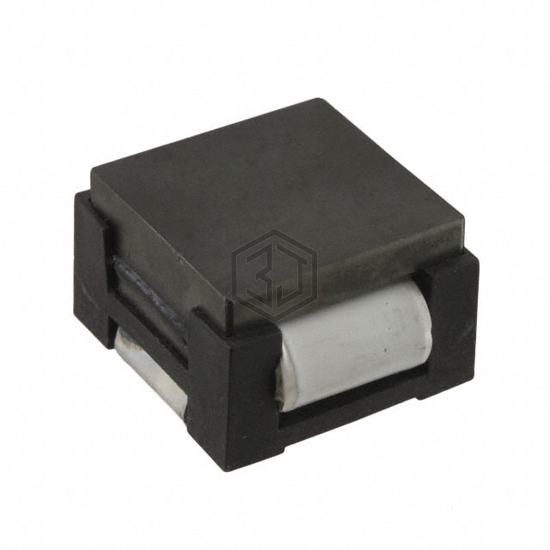

HC3-4R7-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 4.7UH 33.8A 2.17 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 33.8 A.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 33.8 A |
| Current - Saturation (Isat) | 38A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.17mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.181" L x 0.996" W (30.00mm x 25.30mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
Submit your RFQ for HC3-4R7-R and get a quote within 24 hours.
