FIXED IND 470NH 52.9A 0.6MOHM SM

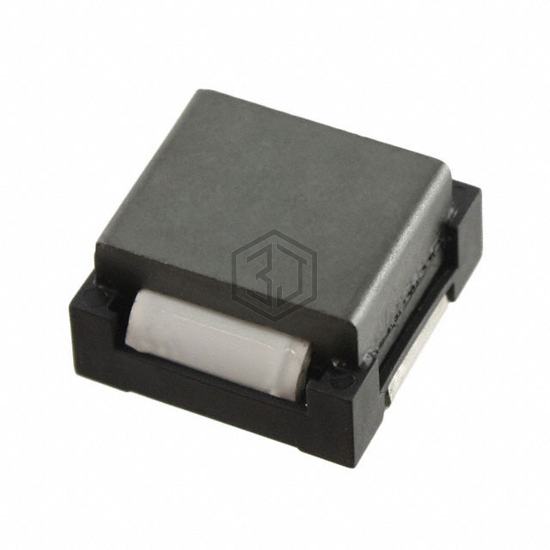

HC2LP-R47-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 470NH 52.9A 0.6MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 52.9 A.
In Stock: 130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 52.9 A |
| Current - Saturation (Isat) | 63.75A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.756" L x 0.756" W (19.20mm x 19.20mm) |
| Height - Seated (Max) | 0.440" (11.18mm) |
Submit your RFQ for HC2LP-R47-R and get a quote within 24 hours.
