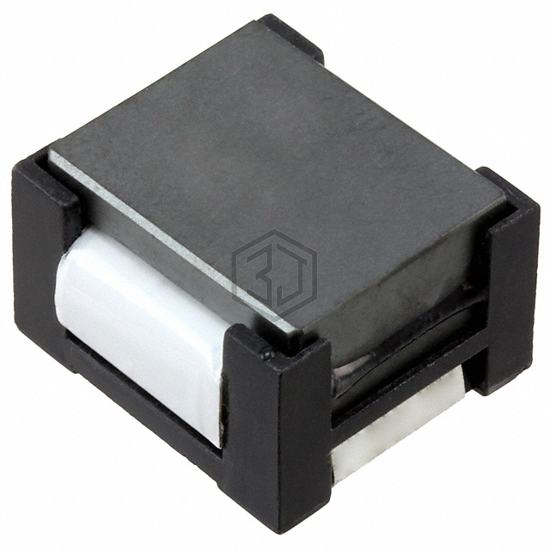

FIXED IND 4.7UH 17A 4.6 MOHM SMD
HC2-4R7TR-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 4.7UH 17A 4.6 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 17 A.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | 21.25A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.756" L x 0.748" W (19.20mm x 19.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
Submit your RFQ for HC2-4R7TR-R and get a quote within 24 hours.
