FIXED IND 570NH 37.83A 0.68 MOHM

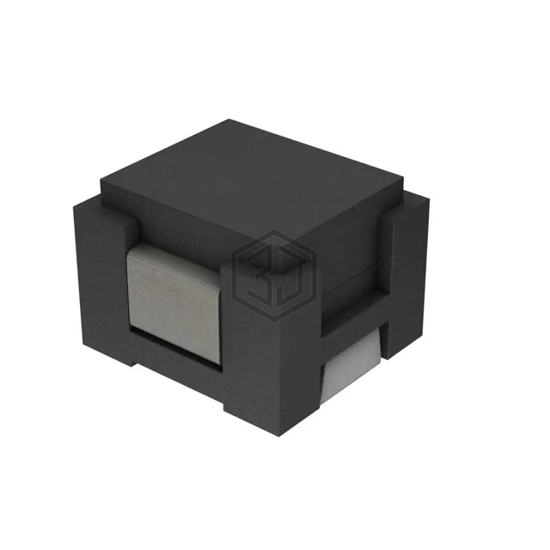

HC1-R57-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 570NH 37.83A 0.68 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 37.83 A.
In Stock: 7,250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 570 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 37.83 A |
| Current - Saturation (Isat) | 33.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.68mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for HC1-R57-R and get a quote within 24 hours.
