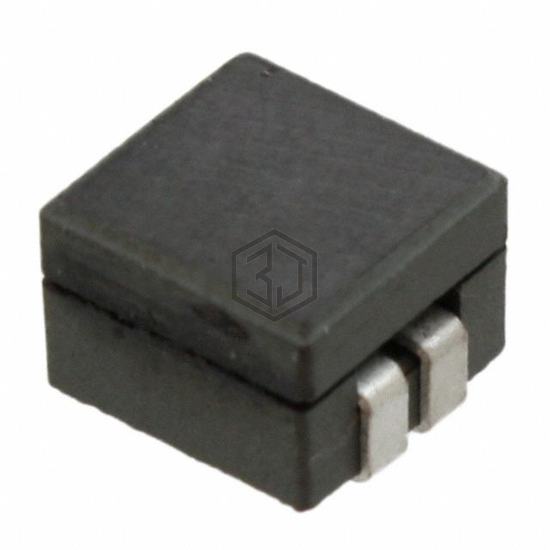

FIXED IND 170NH 13A 0.65MOHM SMD
FPT705-170-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 170NH 13A 0.65MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2727 (6868 Metric), current rating (amps) 13 A.
In Stock: 777
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 170 nH |
| Tolerance | ±12% |
| Current Rating (Amps) | 13 A |
| Current - Saturation (Isat) | 31A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.65mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2727 (6868 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.295" L x 0.268" W (7.50mm x 6.80mm) |
| Height - Seated (Max) | 0.211" (5.35mm) |
Submit your RFQ for FPT705-170-R and get a quote within 24 hours.
