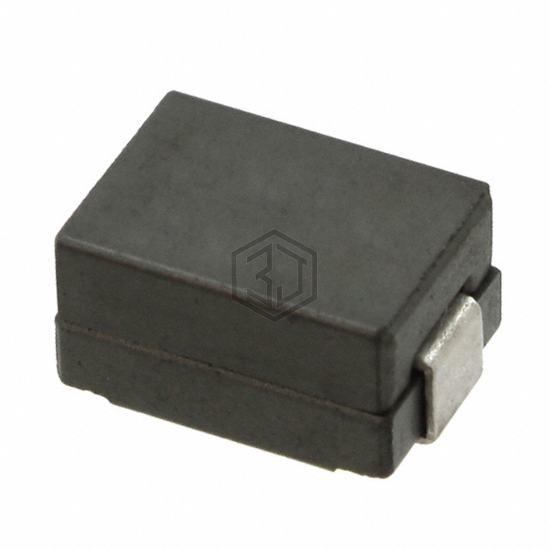

FIXED IND 150NH 40A 0.65MOHM SMD
FP4-150-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 150NH 40A 0.65MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 40 A.
In Stock: 1,443
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 40 A |
| Current - Saturation (Isat) | 42A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.65mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.268" W (10.20mm x 6.80mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for FP4-150-R and get a quote within 24 hours.
