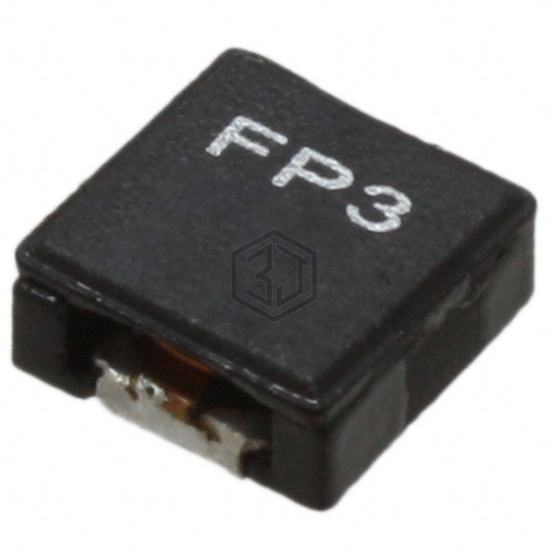

FIXED IND 3.3UH 3.63A 30MOHM SMD
FP3-3R3-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 3.3UH 3.63A 30MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 3.63 A.
In Stock: 12,548
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 3.3 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 3.63 A |
| Current - Saturation (Isat) | 5.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.285" L x 0.264" W (7.25mm x 6.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for FP3-3R3-R and get a quote within 24 hours.
