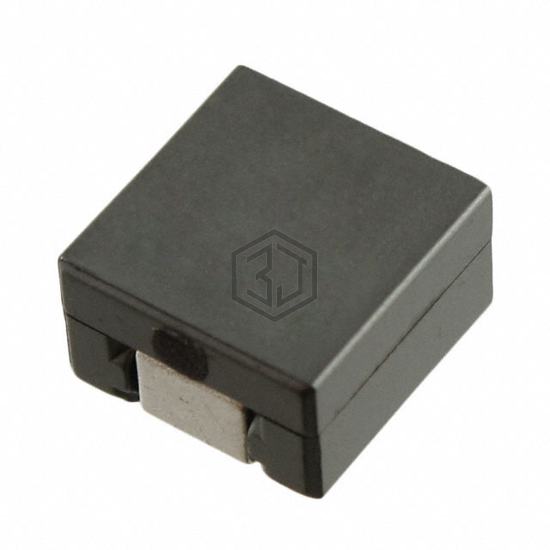

FIXED IND 210NH 68A 0.24MOHM SMD
FP1308-R21-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 210NH 68A 0.24MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 68 A.
In Stock: 138
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 210 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 68 A |
| Current - Saturation (Isat) | 72A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.24mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.539" L x 0.510" W (13.70mm x 12.95mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
