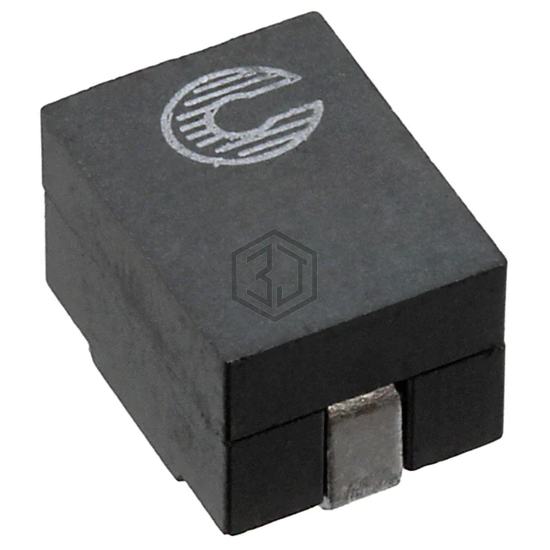

FIXED IND 270NH 61A 0.29MOHM SMD
FP1007R6-R27-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 270NH 61A 0.29MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 61 A.
In Stock: 611
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 270 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 61 A |
| Current - Saturation (Isat) | 41A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.29mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for FP1007R6-R27-R and get a quote within 24 hours.
