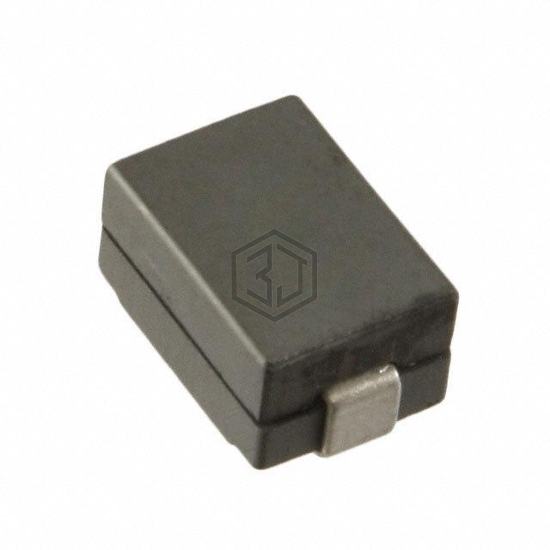

FIXED IND 100NH 53A 0.39MOHM SMD
FP1005R1-R10-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 100NH 53A 0.39MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 53 A.
In Stock: 950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 53 A |
| Current - Saturation (Isat) | 73A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.39mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.276" W (10.20mm x 7.00mm) |
| Height - Seated (Max) | 0.195" (4.95mm) |
