FIXED IND 220NH 49A 0.5 MOHM SMD

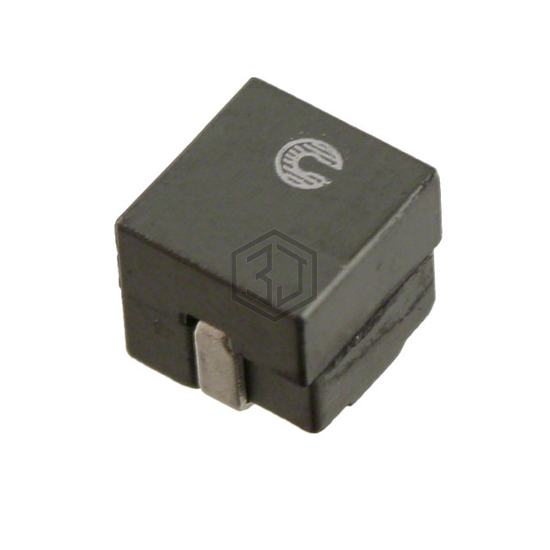

FP0807R1-R22-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 220NH 49A 0.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 49 A.
In Stock: 786
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 49 A |
| Current - Saturation (Isat) | 35A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.299" L x 0.291" W (7.60mm x 7.40mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for FP0807R1-R22-R and get a quote within 24 hours.
