FIXED IND 330UH 391MA 1.85OHM SM

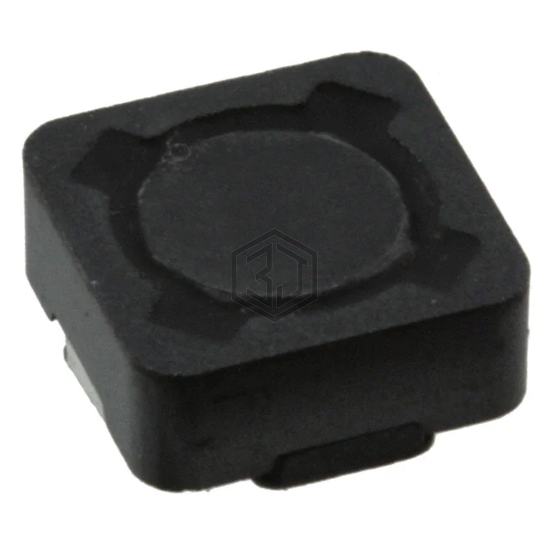

DRA73-331-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 330UH 391MA 1.85OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 165°C, package / case Nonstandard, current rating (amps) 391 mA.
In Stock: 972
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 391 mA |
| Current - Saturation (Isat) | 423mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.85Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 165°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height - Seated (Max) | 0.140" (3.55mm) |
