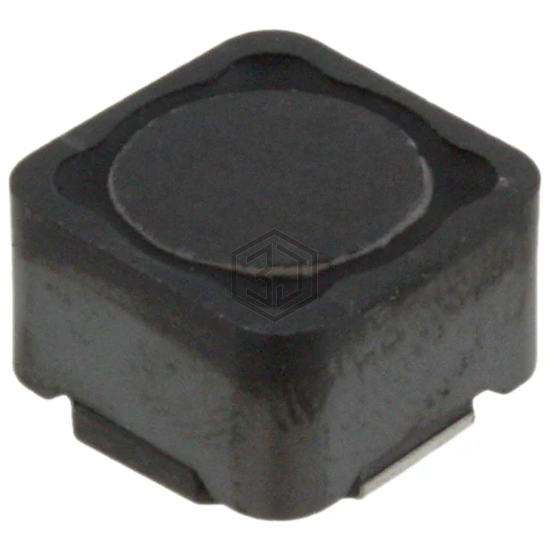

FIXED IND 22UH 3.98A 40 MOHM SMD
DRA127-220-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 22UH 3.98A 40 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 165°C, package / case Nonstandard, current rating (amps) 3.98 A.
In Stock: 295
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.98 A |
| Current - Saturation (Isat) | 7.57A |
| Shielding | Shielded |
| DC Resistance (DCR) | 40mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 165°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for DRA127-220-R and get a quote within 24 hours.
