FIXED IND 68UH 890MA 358MOHM SMD

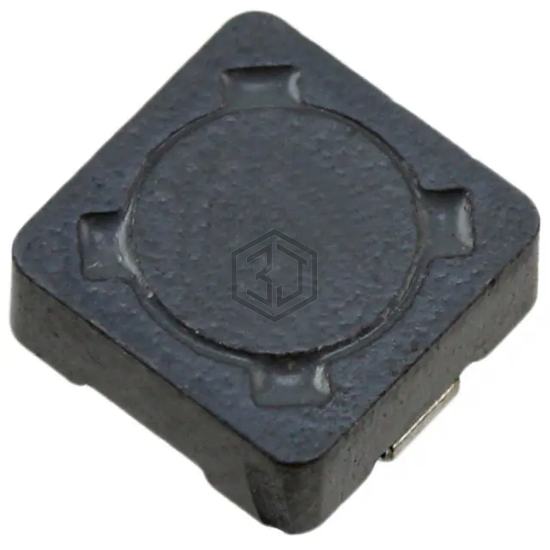

DR73-680-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 68UH 890MA 358MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 890 mA.
In Stock: 7,456
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 890 mA |
| Current - Saturation (Isat) | 960mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 358mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height - Seated (Max) | 0.140" (3.55mm) |
Submit your RFQ for DR73-680-R and get a quote within 24 hours.
