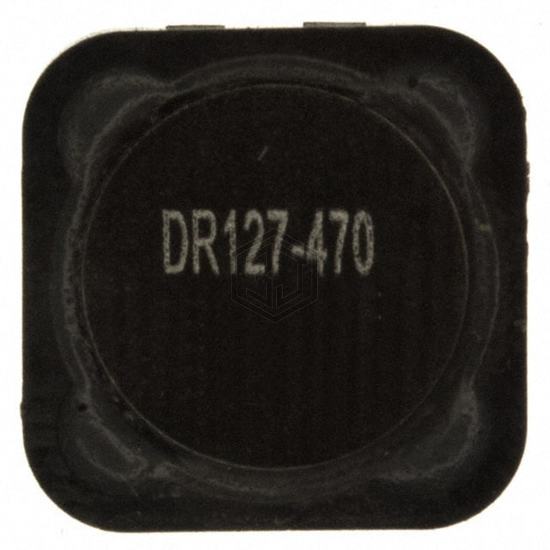

FIXED IND 47UH 2.95A 71.9MOHM SM
DR127-470-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 47UH 2.95A 71.9MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.95 A.
In Stock: 5,240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.95 A |
| Current - Saturation (Isat) | 5.28A |
| Shielding | Shielded |
| DC Resistance (DCR) | 71.9mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for DR127-470-R and get a quote within 24 hours.
