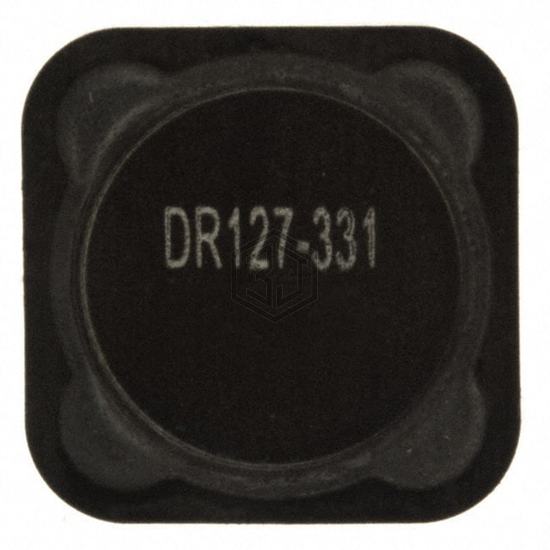

FIXED IND 330UH 1.04A 574MOHM SM
DR127-331-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 330UH 1.04A 574MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.04 A.
In Stock: 11,782
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.04 A |
| Current - Saturation (Isat) | 2.01A |
| Shielding | Shielded |
| DC Resistance (DCR) | 574mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for DR127-331-R and get a quote within 24 hours.
