FIXED IND 3.8UH 5.5A 13 MOHM SMD

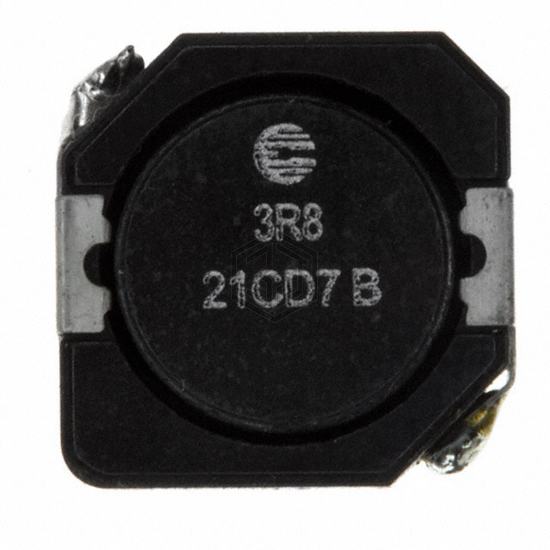

DR1040-3R8-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 3.8UH 5.5A 13 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.5 A.
In Stock: 850
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 6.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for DR1040-3R8-R and get a quote within 24 hours.
