FIXED IND 220UH 700MA 640MOHM SM

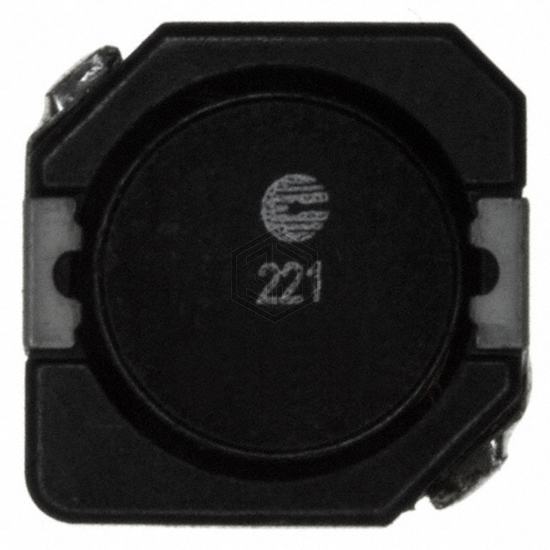

DR1040-221-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 220UH 700MA 640MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 700 mA.
In Stock: 1,105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | 920mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 640mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for DR1040-221-R and get a quote within 24 hours.
